Name: 12.5mm Dia 1480nm 45°, Laser Diode Mirror
Brand: TECHSPEC
SKU: 47-002
Price: C$83.93

Surface Quality:

10-5

Type:

Laser Mirror

Parallelism (arcmin):

Clear Aperture (%):

>90

Back Surface:

Ground

Reflection at DWL (%):

99.8

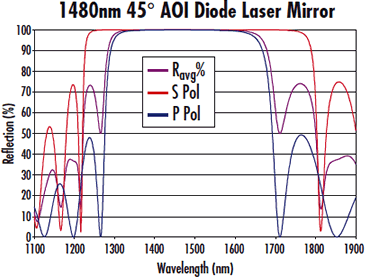

Coating Specification:

R_abs >99.8% @ 1480nm
R_avg >98% @ 1376 - 1584nm

Wavelength Range (nm):

1376 - 1584

Surface Flatness (P-V):

λ/10

Coating Type:

Dielectric

Coating:

Dielectric Mirror (1376-1584nm)

Design Wavelength DWL (nm):

1480

Diameter (mm):

12.50 +0.0/-0.2

Thickness (mm):

6.00 ±0.2

Angle of Incidence (°):

Fused Silica (Corning 7980)

Regulatory Compliance

RoHS:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

>99.8% Reflectivity at Design Wavelengths
Excellent Broadband Performance for Range of Wavelengths
Designed for Common Diode Lasers

TECHSPEC® Diode Laser Line Mirrors are designed to offer high reflection for the most common diode laser wavelengths. Designed for a 0° or 45° angle of incidence, these mirrors are ideal for beam-steering and folding applications.

Our line of TECHSPEC® laser line mirrors are specially designed for even the most demanding laser applications. Combining laser-quality substrates of up to 10-5 surface quality, with a dense reflective coating, and a damage threshold specific to the laser type and wavelength, these mirrors are ideal for a wide range of applications requiring precision reflectivity and incredible durability. All TECHSPEC® laser line mirrors are designed to minimize scatter loss and to be easily mounted into any optical system.
