Name: 25.4mm Dia. x 50.8mm FL, Uncoated, ISP Optics Calcium Fluoride (CaF 2 ) DCX Lens | CF-BX-25-50
Brand: ISP Optics
SKU: 47-057
Price: C$367.50

Diameter (mm):

25.40 +0.00/-0.13

Effective Focal Length EFL (mm):

50.80

Coating:

Uncoated

Calcium Fluoride, IR Grade (CaF₂)

Surface Quality:

60-40

Clear Aperture (%):

90.00

Centering (arcmin):

Bevel:

Protective bevel as needed

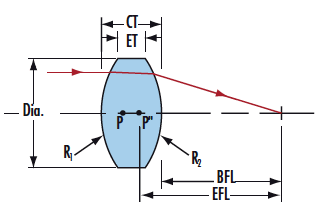

Center Thickness CT (mm):

6.20

Center Thickness Tolerance (mm):

±0.2

Edge Thickness ET (mm):

2.00

Radius R₁=-R₂ (mm):

39.61

Back Focal Length BFL (mm) @ DWL:

48.51

Effective Focal Length EFL @ 0.6328μm (mm):

46.86

Effective Focal Length EFL @ 1.064μm (mm):

47.33

Effective Focal Length EFL @ 2.94μm (mm):

48.47

Effective Focal Length EFL @ 5.0μm (mm):

50.80

f/#:

2.00

Focal Length Specification Wavelength (μm):

5.00

Focal Length Tolerance (%):

±2 @ DWL

Numerical Aperture NA:

0.25

Surface Accuracy:

1λ

Type:

Double-Convex Lens

Wavelength Range (μm):

0.35 - 7

Wavelength Range (nm):

350 - 7000

Model Number:

CF-BX-25-50

Regulatory Compliance

RoHS 2015:

Compliant

Reach 209:

Compliant

Certificate of Conformance:

View

Product Family Description

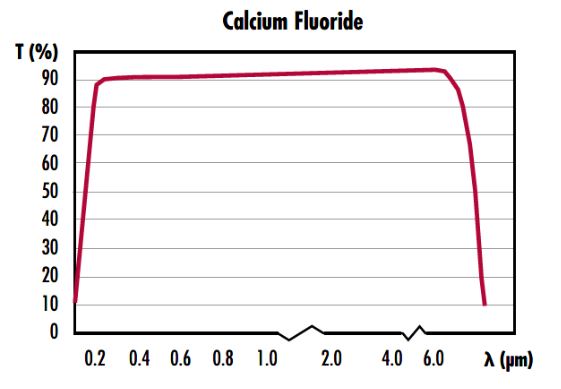

Greater than 90% Transmission from 350nm-7μm
Low Index of Refraction
High Laser Damage Threshold

ISP Optics Calcium Fluoride Double-Convex (DCX) Lenses are ideal for finite imaging applications requiring high transmission in the infrared wavelength spectrum. Calcium Fluoride features greater than 90% transmission from 350nm to 7μm and a low refractive index, allowing it to be used without an antireflective coating. In addition, its low absorption and high damage threshold makes it a popular choice for use with excimer lasers. ISP Optics Calcium Fluoride Double-Convex (DCX) Lenses offer low solubility and superior hardness compared to other fluoride-based substrates, allowing for use in harsh environments.
