Products / Optics / Prisms / Dispersion Prisms / Equilateral Prisms
See all 19 Products in Family
TECHSPEC® components are designed, specified, or manufactured by Edmund Optics. Learn More

15mm N-SF11 Uncoated Equilateral Prism

Equilateral Prisms

Equilateral Prisms

×
Stock #47-276
- +
C$145.60
Qty 1-5
C$145.60
Qty 6+
C$131.60
Volume Pricing
Request Quote
Get Product Downloads
Coating:
Uncoated
Length of Face (mm):
15.00
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
N-SF11
Length (mm):
15.00
Surface Quality:
40-20
Type:
Equilateral Prism
Dimensional Tolerance (mm):
±0.1
Angle Tolerance (arcmin):
±2
Image Orientation:
Dispersion
Wavelength Range (nm):
400 - 2500
Surface Flatness (P-V):
λ/4

Regulatory Compliance

RoHS:
Compliant
×
Certificate of Conformance:
View
×

Product Family Description

  • Ideal for Light Dispersion
  • Sizes Ranging from 5 - 50mm
  • Available Uncoated or Anti-Reflection Coated
  • Additional Equilateral Prism Options Available

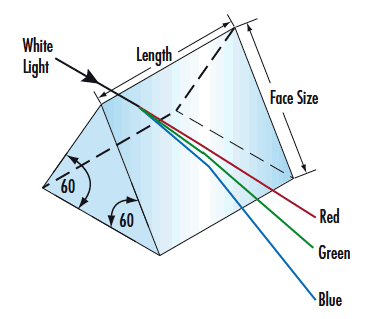

Equilateral prisms feature three equal 60° angles and are often referred to as dispersing prisms. Equilateral prisms are ideal for wavelength separating applications. Our TECHSPEC® Equilateral Prisms are available uncoated or with a single layer MgF2 anti-reflection coating.

×
