See all 11 Products in Family

48 x 84mm AR Coated Float Glass Window

Stock #32-741
C$31.05
Qty 1-5
C$31.05
Qty 6+
C$28.08
Volume Pricing
Request Quote
Dimensions (mm):
48.00 x 84.00
Thickness (mm):
3.00 (nominal)
Coating:
BBAR (400-700nm)
Edges:
Fine Ground
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Float Glass
Surface Flatness:
4 - 6λ

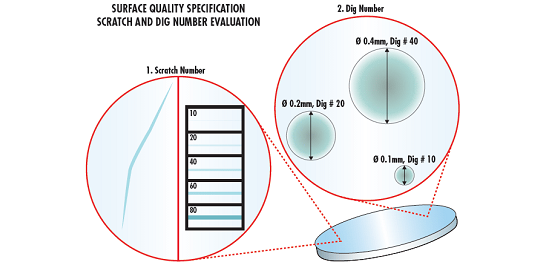

Surface Quality:
80-50
Type:
Protective Window
Wavelength Range (nm):
400 - 700
Length (mm):
84.00
Width (mm):
48.00

Regulatory Compliance

RoHS 2015:
Reach 219:

Product Family Description

  • Transmits Visible and Near Inrared Wavelengths
  • Available Uncoated or with an Anti-Reflection Coating
  • Variety of Sizes Available

Float Glass Optical Windows are optical glass with polished faces that are relatively parallel and are typically used as a protective element between two environments. Float glass readily transmits visible and near-infrared wavelengths and can be used in a wide variety of applications.
