Name: 650nm 25mm Diameter, OD 2.0 Shortpass Filter
Brand: TECHSPEC
SKU: 47-290
Price: C$190.40

Diameter (mm):

25.00 +0.0/-0.2

Angle of Incidence (°):

Optical Density OD (Average):

≥2.0

Cut-Off Wavelength (nm):

650.00

Fused Silica (Corning 7980)

Coating:

Traditional Coated

Rejection Wavelength (nm):

675 - 850

Surface Quality:

40-20

Thickness (mm):

3.00

Thickness Tolerance (mm):

±0.1

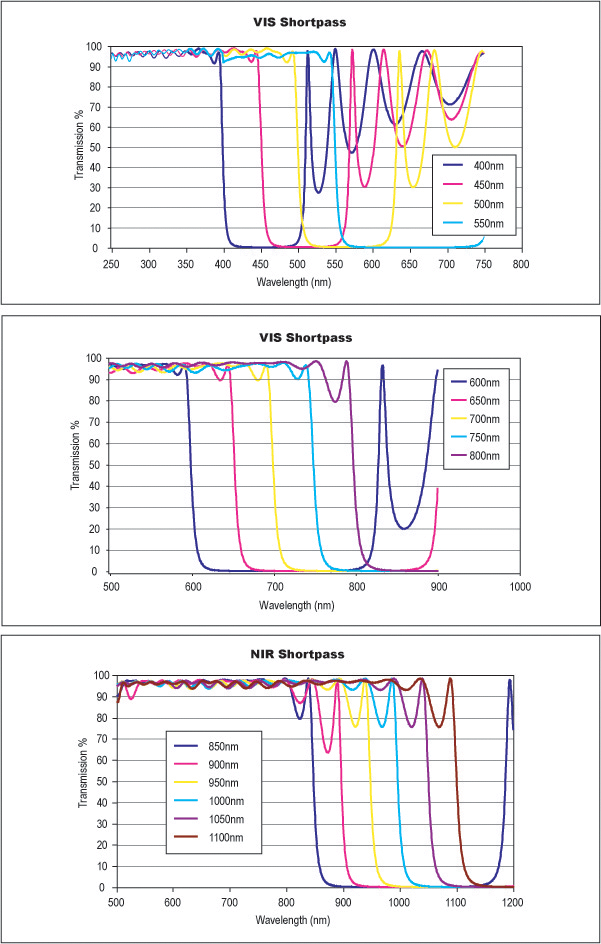

Transmission (%):

>85

Transmission Wavelength (nm):

400 - 630

Type:

Shortpass Filter

Clear Aperture (%):

80.00

Transmitted Wavefront, P-V:

λ/4

Slope Factor (%):

±3

Cut-Off Tolerance (%):

±2

Wavelength Range (nm):

400 - 850

Regulatory Compliance

RoHS 2015:

Compliant

Reach 219:

Compliant

Certificate of Conformance:

View

Product Family Description

Sharp Cut-Off Wavelength
High Transmission / Rejection Efficiency
Precision Fused Silica Substrate

Our TECHSPEC® OD 2.0 Shortpass filters are designed to have a very sharp transition from transmission to reflection, making them extremely useful in a number of applications. Available in a variety of cut-off wavelengths, they are ideal for fluorescence applications, separating spectral orders, and creating custom, efficient bandpass filters when combined with our longpass filters. With an average transmission of 85% and an average blocking optical density of 2.0, excellent contrast can be achieved in machine vision and gauging applications. A single layer AR coating on the back surface enhances the overall efficiency of each filter.
