Name: 12.5mm Dia 50R/50T, VIS Plate Beamsplitter
Brand: TECHSPEC
SKU: 47-021
Price: C$127.40

Angle of Incidence (°):

Clear Aperture (%):

>85

Coating Specification:

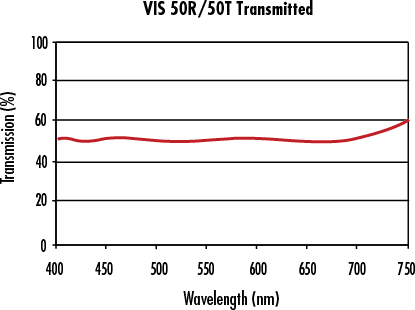

Surface 1: 50/50 ±5% @ 550nm, ±10% @ 400 - 700nm
Surface 2: AR R_avg ≤1%, R_abs ≤2% @ 400 - 700nm

Construction:

Plate

Diameter (mm):

12.50

Dimensional Tolerance (mm):

+0.0/-0.25

Edges:

Cut with 0.25mm maximum edge chip

Note:

Beamsplitter-coated side is marked with a black dot

Parallelism (arcmin):

≤3

Reflection/Transmission Ratio (R/T):

50/50

N-BK7

Surface Flatness (P-V):

1λ per inch

Surface Quality:

60-40

Thickness (mm):

3.00

Thickness Tolerance (mm):

±0.25

Type:

Standard Beamsplitter

Wavelength Range (nm):

400 - 700

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 233:

Compliant

Product Family Description

Many Beamsplitting Ratios Available
Visible and NIR Coating Options Offered
Multi-Layer AR Coated Second Surface
C-Mounted Plate Beamsplitters Also Available

Ideal for dual magnification imaging systems and for combining low power laser beams, TECHSPEC® Visible and NIR Plate Beamsplitters offer the optimum combination of polished, high quality optical-grade glass with minimum substrate thickness. The broadband dielectric coatings provide maximum throughput, ideal for minimizing ghost images, and have much less energy loss than metallic coatings. Back surfaces are multi-layer anti-reflection (AR) coated, reducing back reflections to less than 1.0% for each wavelength range.
