Angle of Incidence (°):

Bevel:

Protective as needed

Clear Aperture (%):

≥90

Clear Aperture CA (mm):

45.72

Diameter (mm):

50.80 ±0.76

Thickness (mm):

3.00 ±0.25

Coating:

BBAR (425-700nm)

Coating Specification:

R_avg ≤0.5% @ 425 - 700nm

Edges:

Ground

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

Float Glass

Surface Quality:

80-50

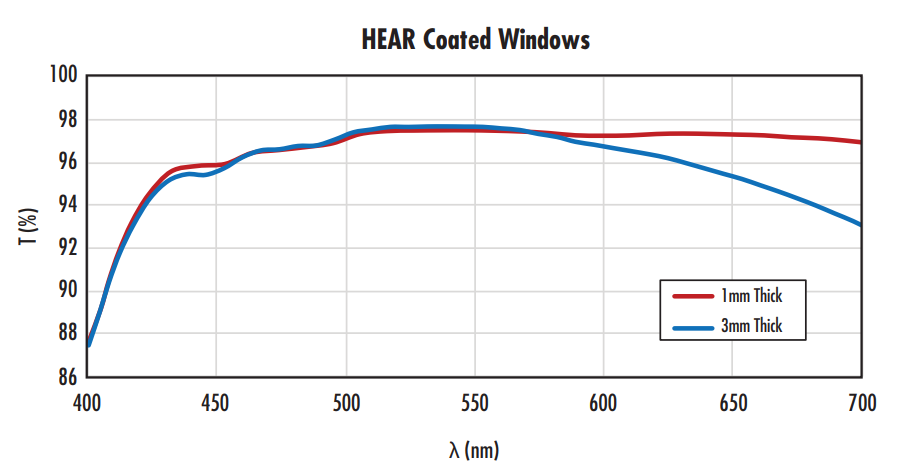

Transmission (%):

95.6 Average (typical)

Type:

Protective Window

Wavelength Range (nm):

425 - 700

Type of Window:

Glass

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 233:

Compliant

Product Family Description

High Transmission
Eliminate Back Reflections and Reduce Glare
Available in a Wide Range of Sizes

High Efficiency Anti-Reflection (HEAR) Coated Windows feature dual Broadband coatings, reducing reflectance to ≤0.5%. Back reflections are virtually eliminated by the coating, offering improved readability when used in industrial or scientific displays. Their high transmission makes them ideal for many other optical applications.
